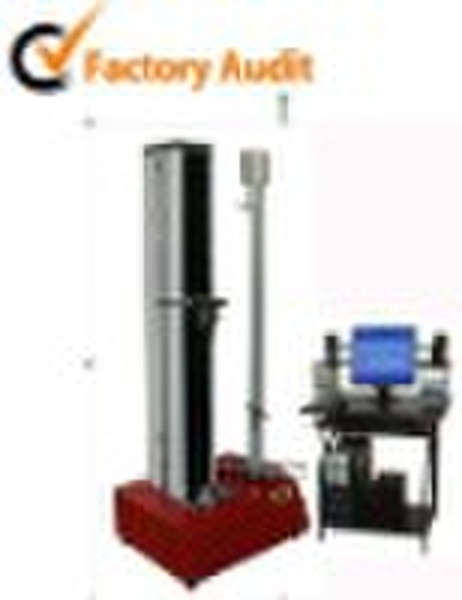

WDS-W Tensile testing machine for film

WDS-W Electronic Universal Testing Machine is full of the well- developed technology, and adopting the computer control technology, single guide screw structure, the machine have the functions of parameter setting memory, pick up test data, data processing and analyzing, display and print the test curve, print the test report. Also it can display the test curves real time. You can choose different curves of stress-stain, force-stretching, force-time and strength-time, etc.The coordinates can transform automatically. The testing space is large, since adopting high sensitive sensor and the current most well-developed measurement technology and the element, the strength value measurement accuracy is high, the stability is good, reacts fast and inertia is little. Prevalent main engine, control, measurement and the operation are the integration composition, the configuration composition is tight, and it is convenient to manipulate, the application is vast and so on. The technical parameter (1) The max. testing force value 5000N (2) Test speed0.01-500mm/min Non-stage speed adjustment (3) Speed accuracy: 0.1-500mm/min is less than 1% of value read 0.01-500mm/min is less than 2% of value read (4) Resolution of crossbeam displacement0.001mm (5) Displacement measure precision: less than ±0.5% of value read (6) Displacement measure range900mm(or made by the usedemand) (7) Force measure range: 0.4%FS-100%FS (8) Force pick-up accuracy: less than ±0.5% of value read (9) Force resolution: 0.1N (10)Force grade: 0.5grade (11)Force accuracy: 1N
