heating deflection & softening temperature mea

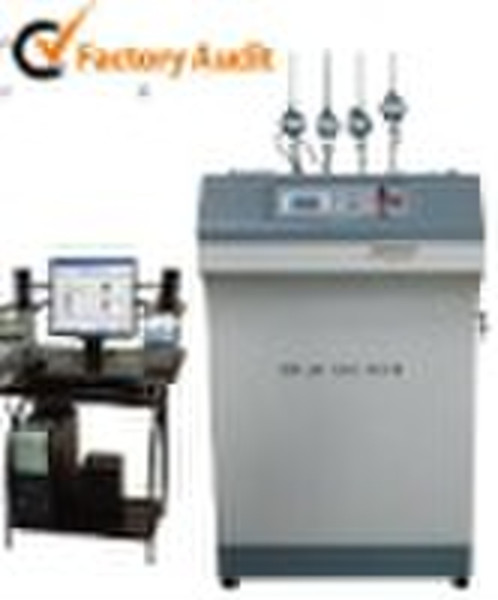

RV-300F type is used to measure heating deflection and vicat softening temperature of thermoplastic material of plastic and rubber. It is widely used in the production of plastic materials and products and scientific research. It adopts PC controlled technology, measures and controls temperature and deformation automatically, gets test results automatically. In addition, with compact frame, beautiful style, stable quality, it is a high performance testing machine and has functions of discharging lampblack pollution and cooling, so that it is welcomed by customers. RV-300F Heating deflection and Vicat softening temperature measuring apparatus adopts computer control technology,WINDOWS English interface,measure the control temperature and deflectiondraw test curve real time,calculate the test result automatically and print the test report. This machine is standard type. Equipment conforms to the following standards requirements: ISO75, ISO306, GB1633, GB1634, and GB8802. 1.1 Main technical parameter: 1. Heat Deflection Temperature: room temperature to 300 2. Vicat Softening Temperature: room temperature to 300 3. Test Station: 3 stations 4. Heating Speed: 120 /h12±1 /6min50 C /h5±0.5 /6min 5. Whole set of English version control software and adapter for Windows system. 6. Deflection measuring Range: 1mm 7. Maximum Temperature Accuracy: ±0.5 8. Temperature error: ±0.5 9. Maximum deflection error: 0.01mm 10. Heating power: 3KW 11. Power supply : 415V±10% 15A 50Hz 12. Sample frame automatic raise and fall. 1.2 Main configuration: 1. Mainframe one 2. Prod with VICAT testing three 3. Press head with Heat Deflection testing three
